F 7713

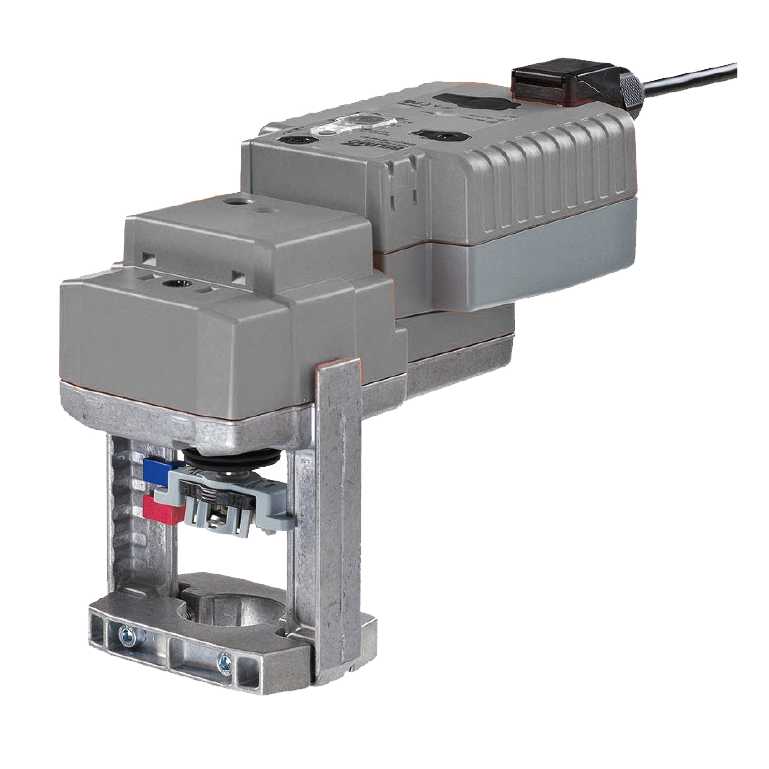

Stellantrieb für 2- und 3-Weg-Hubventile, fail-safe, positioning force 1000 N
Actuation: continuous, control signal 2...10 V, positioning force 1000 N, stroke 20 mm, with position feedback signal 2 - 10 V, connection terminals with cable 1 m, operating time of motor 150s / 20mm, running time fail-safe 35s / 20mm, degree of protection IP54, manual adjustment with push button, power consumption in operation 2.5 W.
Product List
| Code | Description |
|
|---|---|---|
| F 7713 08 | HERZ actuator for 2-way and 3-way globe valves 24 V AC / DC, fail-safe |
|
