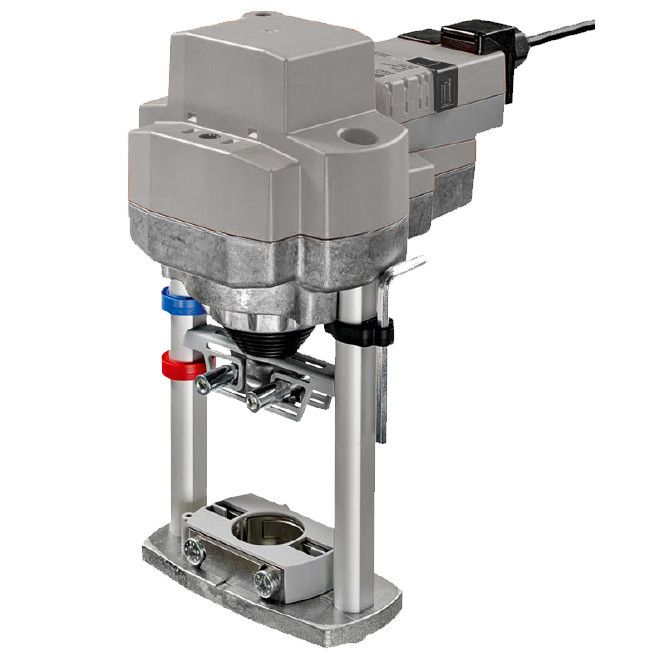

F 7713
Stellantrieb für 2- und 3-Weg-Hubventile, fast running, positioning force 2500 N
Actuation: continuous, control signal 2...10 V, positioning force 2500 N, stroke 40 mm, with position feedback signal 2 - 10 V, connection cable 1 m, operating time of motor 35s / 40mm, degree of protection IP54, manual adjustment with push button, lockable, power consumption in operation 11 W.
Product List
| Code | Description |
|
|---|---|---|
| F 7713 07 | Stellantrieb für 2- und 3-Weg-Hubventile, fast running, positioning force 2500 N |
|
