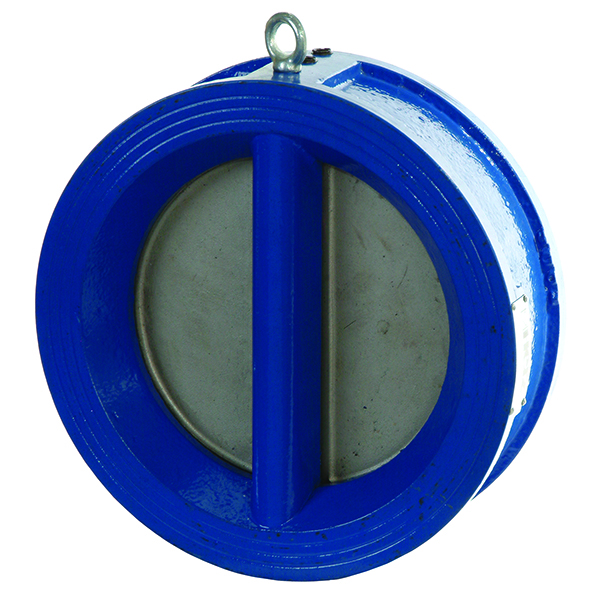

Materials

• Body (1): GG25

• Disc (2): GGG40

• Seat (3): EPDM GGG40

• Spring (4): Stainless steel

• Hinge pin (5): Stainless steel

• Stop pin (6): Stainless steel

• Disc Bearings (7): PTFE

• Body bearings (8): PTFE

• Plug (9): Steel

• Pin stabilizer (10): Rubber

• Eye bolt (11): Steel

Specification

• Temperature range: -10°C ... +110°C

• Pressure rate: PN16

• Flange Dimensions according to EN1092

• Design standard EN 12334

• Coating epoxy coated, blue RAL5000
