2622

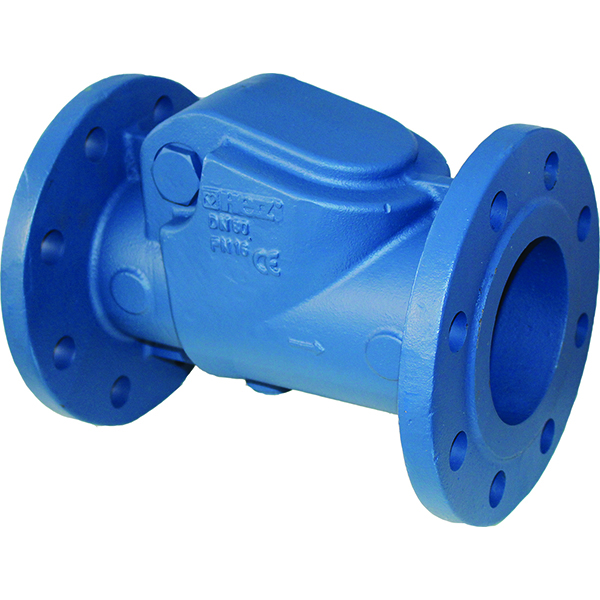

Swing Check Valve
Specification
-
Temperature range: -10°C ... +110°C
-
Pressure rate: PN16
-
Flange Dimensions according to EN1092-2
-
Design standard EN 12334
-
Coating painted blue RAL5000
-
For hot and cold water systems for fluids excluding acid
Product List
| Code | Description |
|---|---|
| M 4262 22 | Swing Check Valve DN 50 |
| M 4262 22 | Swing Check Valve DN 65 |
| M 4262 22 | Swing Check Valve DN 80 |
| M 4262 22 | Swing Check Valve DN 100 |
| M 4262 22 | Swing Check Valve DN 125 |
| M 4262 22 | Swing Check Valve DN 150 |
| M 4262 22 | Swing Check Valve DN 200 |
| M 4262 22 | Swing Check Valve DN 250 |
| M 4262 22 | Swing Check Valve DN 300 |
-
