HERZ ARMATUREN - Inclined Shut-off Valve With Rising Spindle
Feel the Water
Search

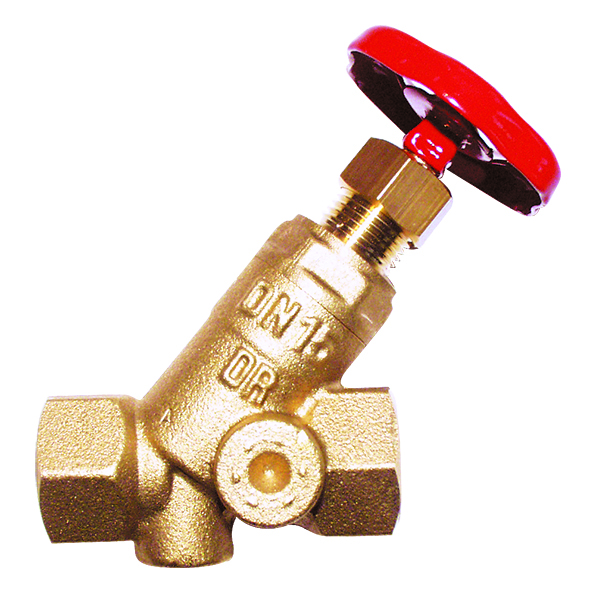

Inclined Shut-off Valve With Rising Spindle

4115 STRÖMAX

Inclined Shut-off Valve With Rising Spindle

Technical Data

Max. operation temperature: 110°C

Max. operation pressure: 20 bar

Max. differential pressure on closed seat: 10 bar

Body: casted DZR brass CC752S

Upper part: DZR brass CW602N

Cone: DZR brass CW602N

Spindle: brass CW617N

Sealing: EPDM

Hand wheel: sheet steel

Drain possibility: 1 4115 11- 18

Product List

Code Description
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 80
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 80
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 65
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 50
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 40
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 32
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 25
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 20
M 1411 51 Inclined Shut-off Valve With Rising Spindle DN 15
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 10
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 65
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 50
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 40
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 32
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 25
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 20
M 1411 50 Inclined Shut-off Valve With Rising Spindle DN 15
