HERZ ARMATUREN - Inclined Shut-off Valve With Non-Rising Spindle
Feel the Water
Search

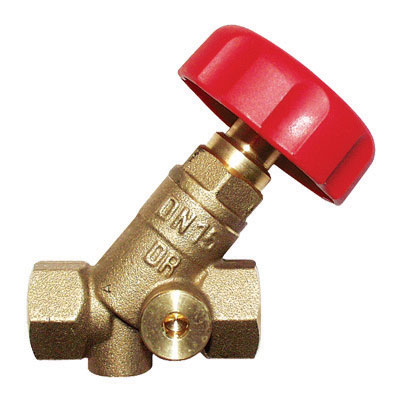

Inclined Shut-off Valve With Non-Rising Spindle

4125 STRÖMAX-D

Inclined Shut-off Valve With Non-Rising Spindle

Technical Data

Max. operation temperature: 110°C

Max. operation pressure: 20 bar

Max. differential pressure on closed seat: 10 bar

Body: casted DZR brass CC752S

Upper part: DZR brass CW602N

Cone: DZR brass CW602N

Spindle brass CW617N

Sealing: EPDM

Hand wheel: Polyamide

Drain possibility: 1 4125 71-78

Product List

Code Description
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 15
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 20
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 25
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 32
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 40
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 50
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 65
M 1412 56 Inclined Shut-off Valve With Non-Rising Spindle DN 80
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 15
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 20
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 25
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 32
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 40
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 50
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 65
M 1412 57 Inclined Shut-off Valve With Non-Rising Spindle DN 80
