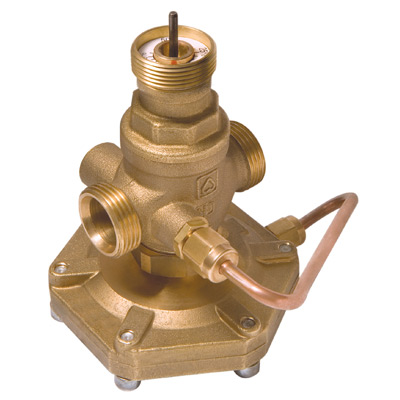

Pressure Independent Balancing Control Valve

4006

Pressure Independent Balancing Control Valve

Material:

  • Body: DZR

  • Membranes and O-rings: EPDM

Technical data:

  • Max. differential pressure on the body 4 bar

  • Min. operating temp.: 2 °C (pure water);

  • Min. operating temp.:- 20 °C (frost protection)

  • Max. operating temp.: up to DN 32 130 °C from DN 40 110 °C

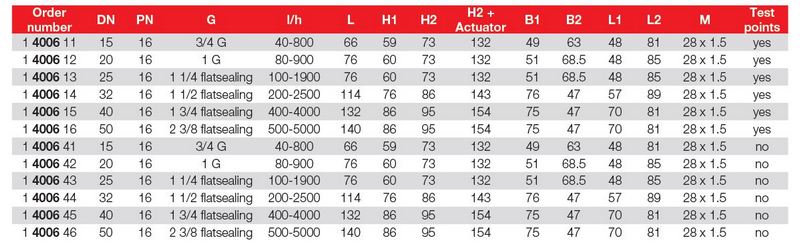

Product List

Code Description
M 1400 61 Pressure Independent Balancing Control Valve DN 15
M 1400 61 Pressure Independent Balancing Control Valve DN 20
M 1400 61 Pressure Independent Balancing Control Valve DN 25
M 1400 61 Pressure Independent Balancing Control Valve DN 32
M 1400 61 Pressure Independent Balancing Control Valve DN 40
M 1400 61 Pressure Independent Balancing Control Valve DN 50
M 1400 64 Pressure Independent Balancing Control Valve DN 15
M 1400 64 Pressure Independent Balancing Control Valve DN 20
M 1400 64 Pressure Independent Balancing Control Valve DN 25
M 1400 64 Pressure Independent Balancing Control Valve DN 32
M 1400 64 Pressure Independent Balancing Control Valve DN 40
M 1400 64 Pressure Independent Balancing Control Valve DN 50
More Description
