Feel the Water
776X

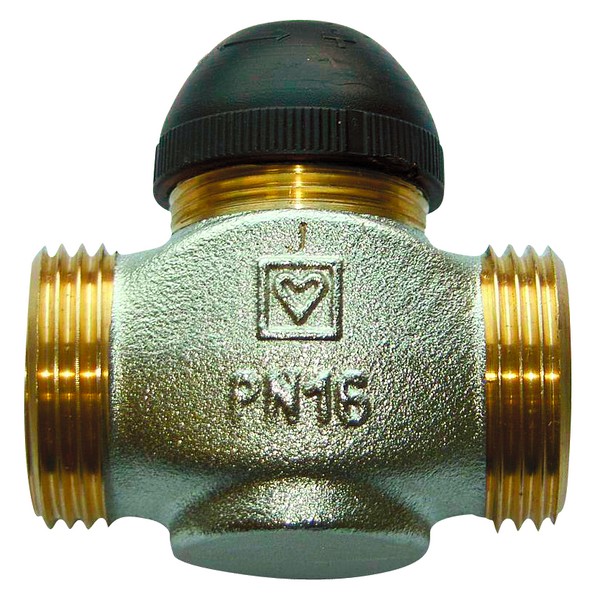

Thermostatic Three-Port Valves
Technical data:
max. operating temperature: 120°C
min. operating temperature: -20°C
max. operating pressure: 16 bar
Material:
Body: DZR

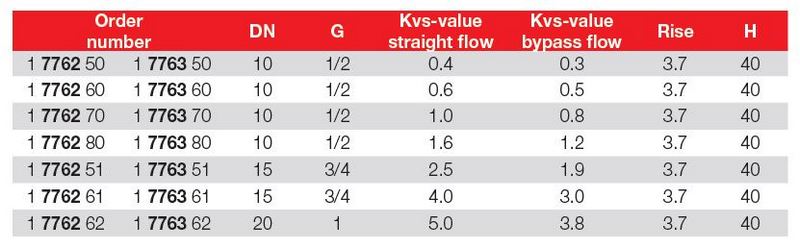

Product List
| Code | Description |
|---|---|
| M 1776 25 | Thermostatic Three-Port Valves DN 10 |
| M 1776 26 | Thermostatic Three-Port Valves DN 10 |
| M 1776 27 | Thermostatic Three-Port Valves DN 10 |
| M 1776 28 | Thermostatic Three-Port Valves DN 10 |
| M 1776 25 | Thermostatic Three-Port Valves DN 15 |
| M 1776 26 | Thermostatic Three-Port Valves DN 15 |
| M 1776 26 | Thermostatic Three-Port Valves DN 20 |
| M 1776 35 | Thermostatic Three-Port Valves DN 10 |
| M 1776 36 | Thermostatic Three-Port Valves DN 10 |
| M 1776 37 | Thermostatic Three-Port Valves DN 10 |
| M 1776 38 | Thermostatic Three-Port Valves DN 10 |
| M 1776 35 | Thermostatic Three-Port Valves DN 15 |
| M 1776 36 | Thermostatic Three-Port Valves DN 15 |
| M 1776 36 | Thermostatic Three-Port Valves DN 20 |
