Feel the Water
4017 M

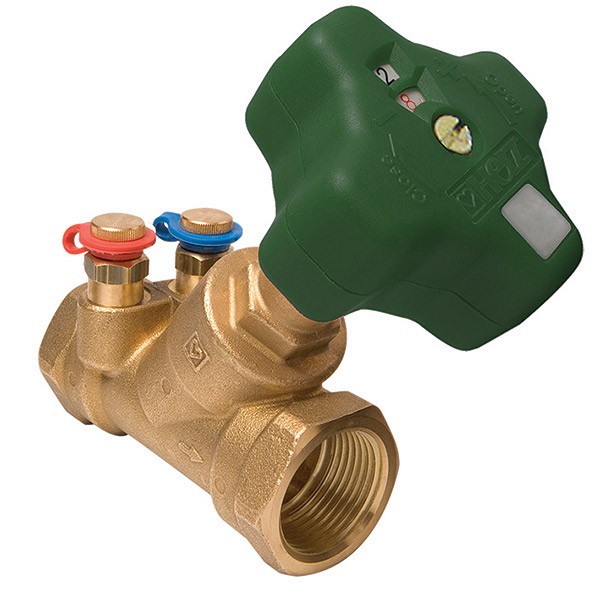

Balancing Valves for hydronic balancing in drinking water installations
Technical data:
-
Max. operating temperature 85 °C at 10 bar
-
Max. operating pressure 20 bar at 20 °C
-
Max. differential pressure at closed valve 10 bar
-
body: DZR brass
-
non-rising stem sealed with Double-O-Ring
-
presetting through stroke limiting,
-
handwheel with presetting digital display
Product List
| Code | Description |
|---|---|
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN15LF |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN15MF |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN15 |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN20 |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN25 |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN32 |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN40 |
| M 2401 70 | Balancing Valves for hydronic balancing in drinking water installations DN50 |
More Description
