Feel the Water
7217 GV

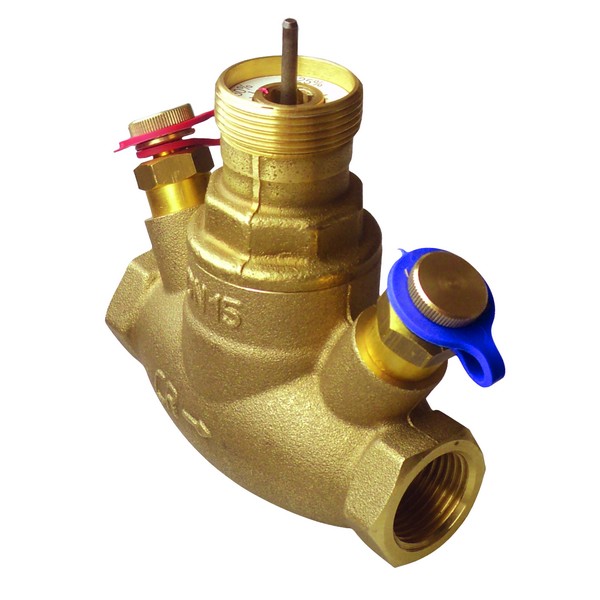

FODRV Control Valve
Technical data:
-
Max. operating pressure: 16 bar
-
Max. diff. pressure on the body: 4 bar
-
Max. diff. pressure on the seat: 4 bar
-
Min. operating temp.: 2 °C (pure water)
Materials:
-
Body: DZR (CC752S)
-
Bonnet: DZR (CW602)
-
Sealings and O-rings EPDM

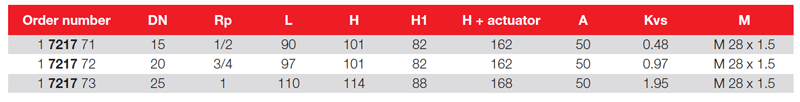

Product List
| Code | Description |
|---|---|
| M 1721 77 | FODRV Control Valve |
| M 1721 77 | FODRV Control Valve |
| M 1721 77 | FODRV Control Valve |
-
