Feel the Water
2300

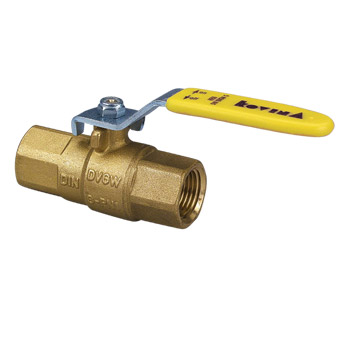

Ball Valve for gas 2300
-
with steer level
-
with steel T-handle
These valves are also suitable für general usage (also for other mediums - oil, water, air ...) due to standard constructionn design. In this case, the temperature range is from -20°C up to +110°C (water 0°C up to 110°C) and working pressure up to max. 2500 kPa (25 bar) - according to the PN-T diagram.
In case of fire, ball valves that have integrated TAS cartridge are sealed up to 925°C for at least one hour.

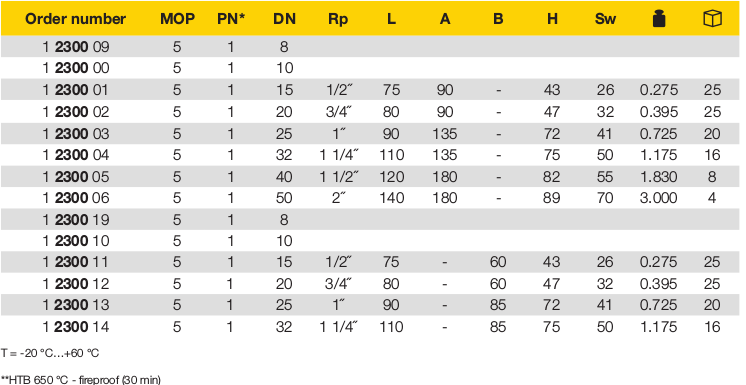

Product List
| Code | Description |
|---|---|
| 1 2300 09 | Ball Valve for gas 2300 DN 8 |
| M 1230 00 | Ball Valve for gas 2300 DN 10 |
| M 1230 00 | Ball Valve for gas 2300 DN 15 |
| M 1230 00 | Ball Valve for gas 2300 DN 20 |
| M 1230 00 | Ball Valve for gas 2300 DN 25 |
| M 1230 00 | Ball Valve for gas 2300 DN 32 |
| M 1230 00 | Ball Valve for gas 2300 DN 40 |
| M 1230 00 | Ball Valve for gas 2300 DN 50 |
| 1 2300 19 | Ball Valve for gas 2300 DN 8 |
| M 1230 01 | Ball Valve for gas 2300 DN 10 |
| M 1230 01 | Ball Valve for gas 2300 DN 15 |
| M 1230 01 | Ball Valve for gas 2300 DN 20 |
| M 1230 01 | Ball Valve for gas 2300 DN 25 |
| M 1230 01 | Ball Valve for gas 2300 DN 32 |
More Description
